Use data panes in NIM Studio
NIM Studio guide
Preview exactly the records you need, inspect one record in context, and export the visible result safely.
Understand preview limitsDirect link to Understand preview limits

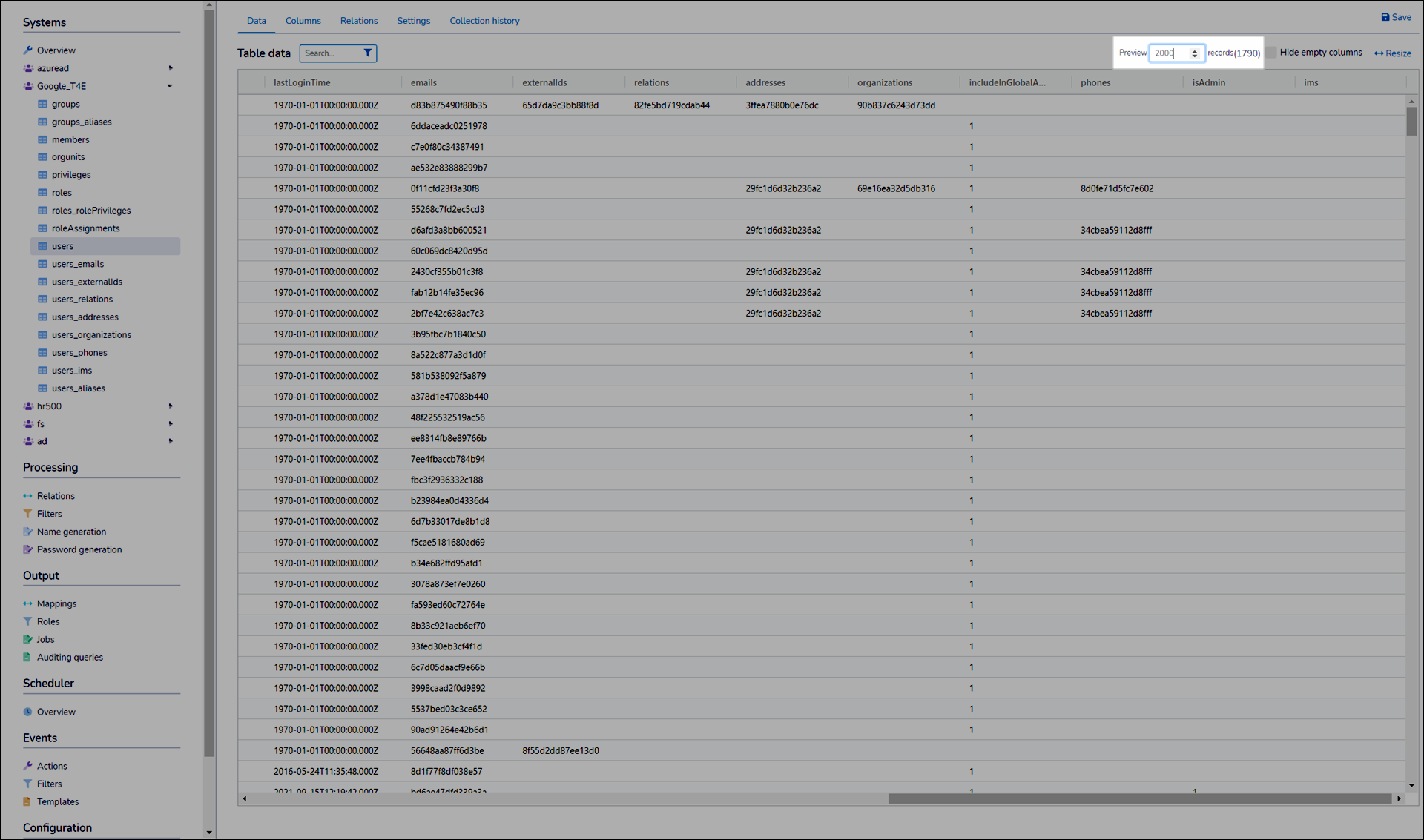

NIM displays 1,000 rows in a data pane by default. Search and export use the displayed preview rows. The input value is the requested count; the value in parentheses is the count returned by NIM.
NIM processes only the requested rows. With duplicate exclusions or relation-driven processing, request a larger value until the returned count stops increasing. For very large filters, this may require a count much higher than the expected rows.
Work with a data paneDirect link to Work with a data pane
Inspect one recordDirect link to Inspect one record
In mappings, name generators, password generators, and similar features, select Select Row, choose the record in the dialog, then select Select. NIM loads that row’s data for the preview.
Download a data-pane resultDirect link to Download a data-pane result
Right-click within the pane, select Export, then choose CSV Export, Excel Export (.xlsx), or Excel Export (.xml).
Change the default for future panesDirect link to Change the default for future panes
Go to Configuration > Settings > Preferences, increase Default Preview Count—for example, 50000—and save.
Access full source dataDirect link to Access full source data
For the original data outside the preview limit, locate the relevant file under C:\ProgramData\Tools4ever\NIM. For example, an Active Directory users collection is stored under sysdata\systems\ad\<YYYYMMDDHHMMSS>.
