Configure Connection
CSV File guide
Grant file access to the NIM service account, select the CSV files to import, and collect data to verify the setup.
Before you startDirect link to Before you start
Ensure that the Windows account running the NIM service can access the folder and read the CSV files. For a network share, check both share and file system permissions for that account.
NIM requires Path for Files, pointing to the folder containing the CSV files you want to collect.
Verify access by collecting data
Test Connection always returns success for this connector. This result does not verify the path, permissions, or file contents. Run a collection from the system to test the connection.
Prepare the CSV folderDirect link to Prepare the CSV folder
- Place the CSV files in a folder accessible from the NIM server.
- Grant the account running the NIM service access to that path and read permission on the files.
- Confirm that the files and folder are accessible under the service account, including any network share permissions.
Create and configure the CSV systemDirect link to Create and configure the CSV system

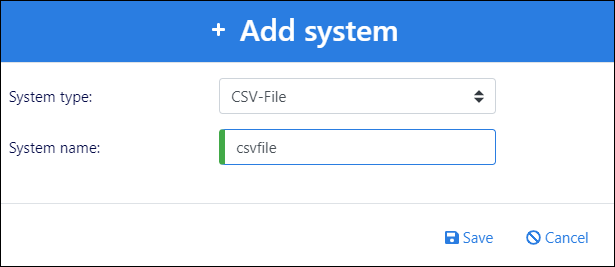

- Go to Systems > Overview.
- Click Add.
- Select CSV-File for System Type.
- Enter a System Name.
- Click Save.

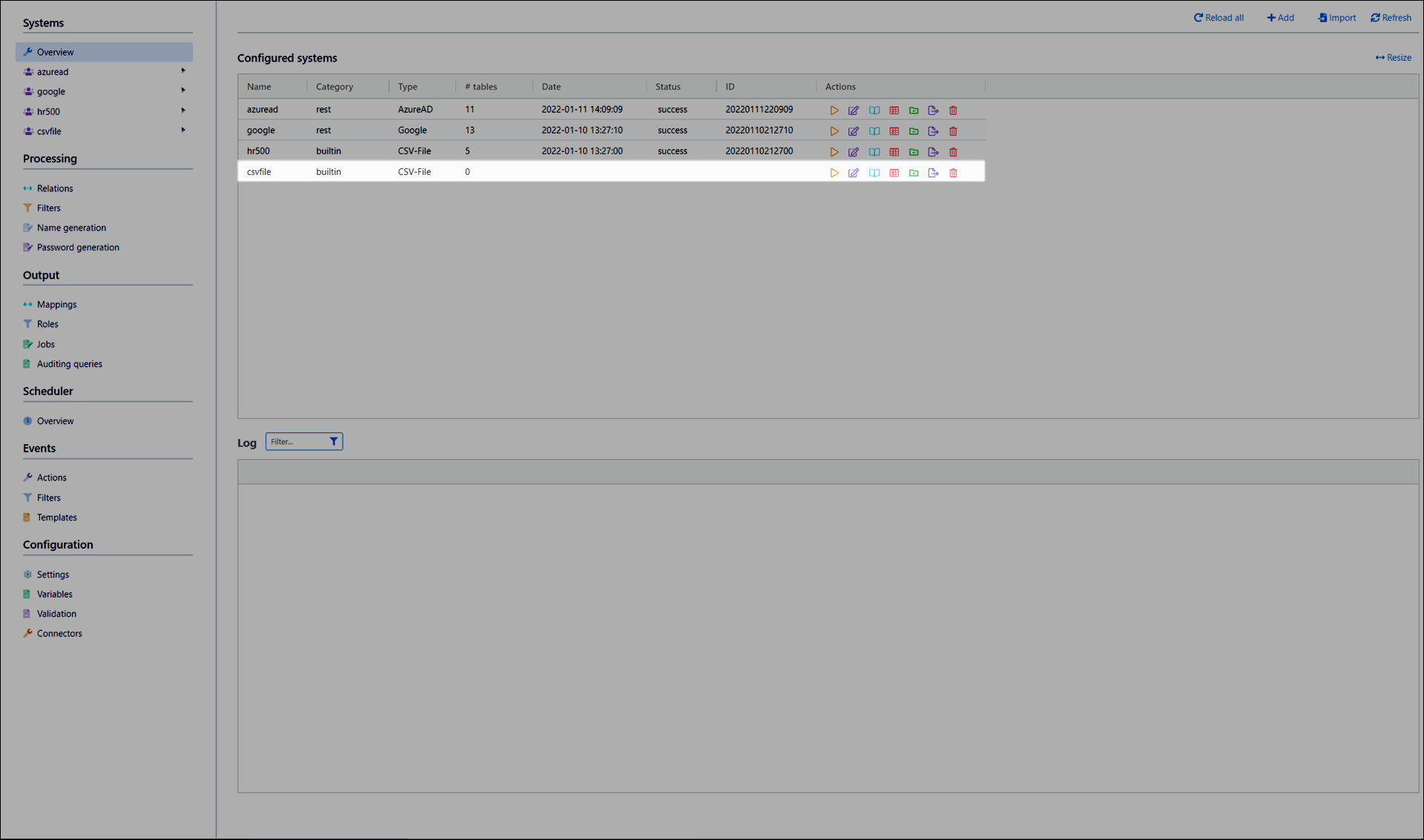

- The new system is added to the Configured Systems pane.
- Click Configure for the system.

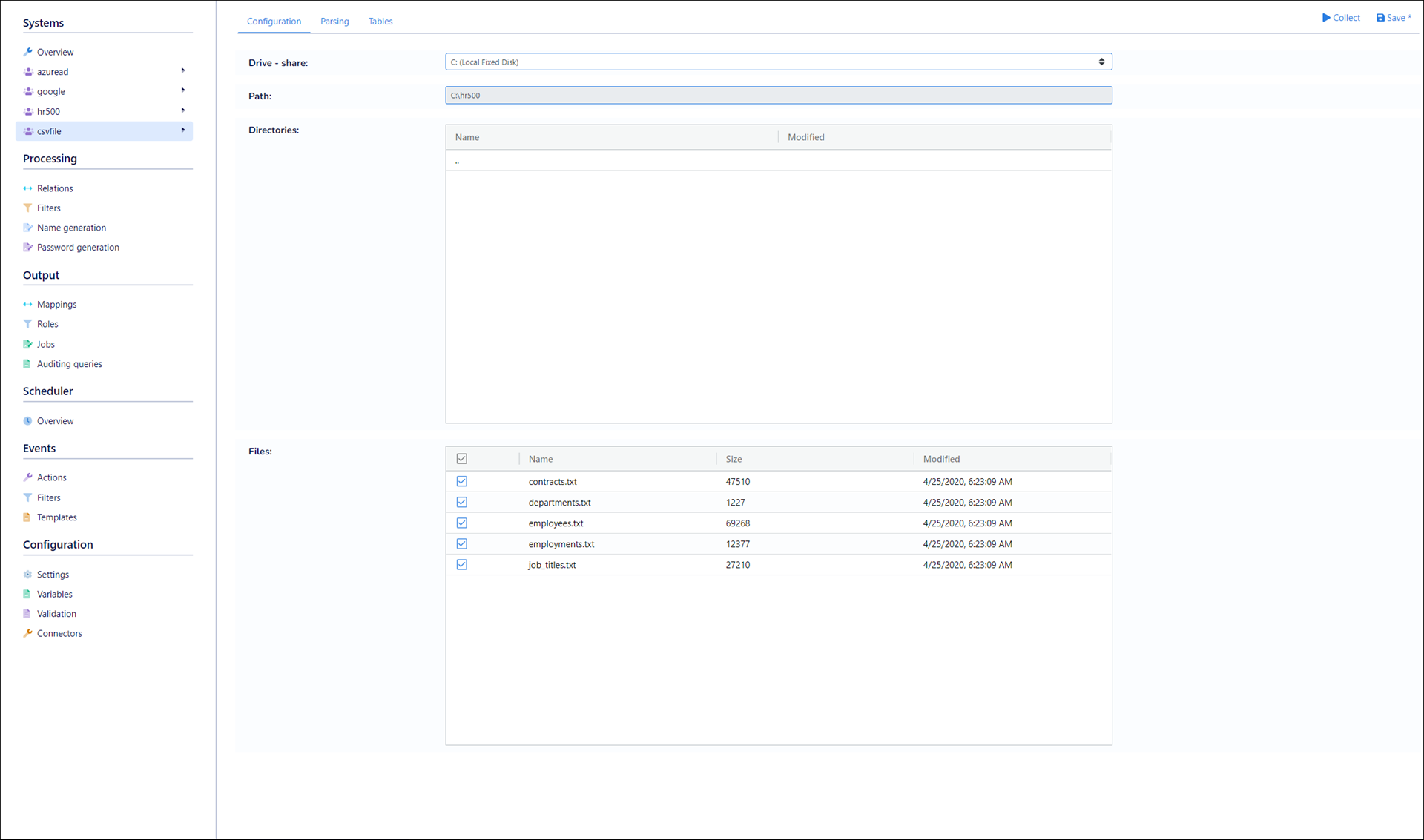

- Configure Path for Files for the source folder, selecting the appropriate drive or share.
- In the Directories pane, navigate to the folder that contains the data files.
- In the Files pane, select the checkbox for each data file to import.
- Optional: Configure the settings on the Parsing tab.
- Click Save.
| NIM setting | Value |
|---|---|
| Path for Files | The folder containing the selected CSV files, accessible to the NIM service account. |
Test access by collecting filesDirect link to Test access by collecting files
- Run a collection from the CSV File system in NIM. Test Connection always returns success and cannot verify file access.
- Confirm that collection completes successfully and inspect the records imported from each selected file.
- Check that the expected columns and values are parsed correctly. Adjust the Parsing settings where needed and collect again.
- If collection fails, verify Path for Files, the selected files, and the NIM service account's folder and file permissions.
- Validate the imported records and matching rules before using the CSV system as source or supplemental data for automation.
Step 1 of 3
